Plan Builder

The Plan Builder is a visual canvas for designing conversation flow as connected states. It stores layout and connection metadata, but the saved plan remains standard plan JSON.

Canvas Overview

The canvas uses a node-and-edge graph:

• Nodes represent conversation control points (Start, State, End)
• Edges represent transitions between states
• Sidebar editors configure the selected node or edge

Core interactions:

• Click a node to edit it
• Drag from one node handle to another to create an edge
• Click an edge label to edit condition and priority
• Drag nodes to save their canvas positions

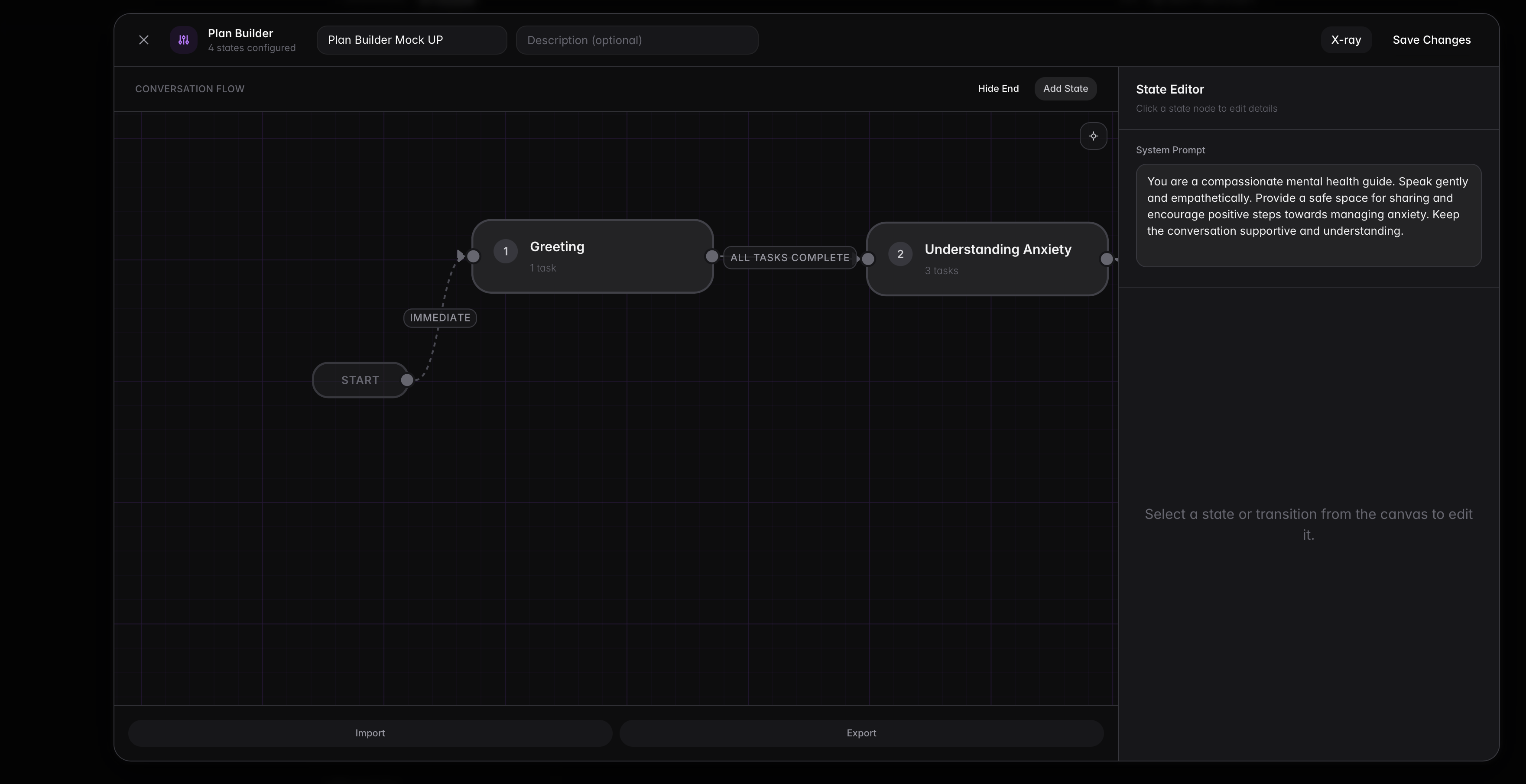

The screenshot below shows the default visual layout: Start on the left, states in the middle, and End on the right. This is the mental model to keep while editing.

Node Types

Start Node

The Start node is fixed on the left side of the canvas and is always present.

It configures:

• initial_state_id (which state starts first)
• agent_spawn_mode (immediate or on_demand)
• session_context.fields (pre-session data collection fields)

State Nodes

State nodes represent executable plan states.

Each state node can be connected to:

• Other state nodes (normal transitions)
• The End node (conversation termination path)

State node cards display:

• State order number (derived from graph order)
• State title
• Task count

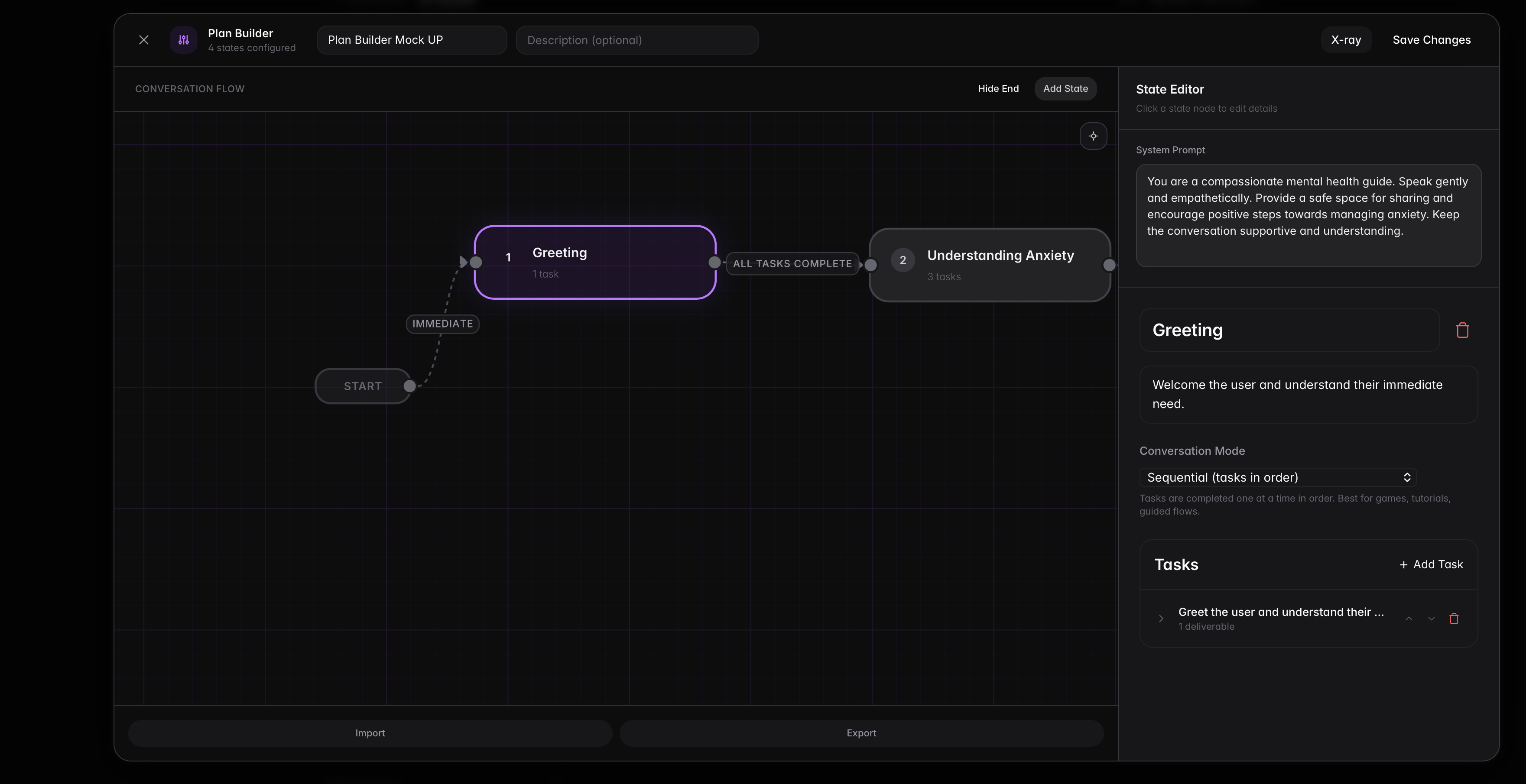

When you click a state node, the right panel switches to the state editor. This is where you edit the state title, execution mode, tasks, and transitions.

End Node

The End node is optional and can be toggled on or off in the builder.

When enabled, connecting a state to End adds that state ID to:

{
  "metadata": {
    "plan_builder": {
      "canvas": {
        "end_state_ids": ["state_a", "state_b"]
      }
    }
  }
}

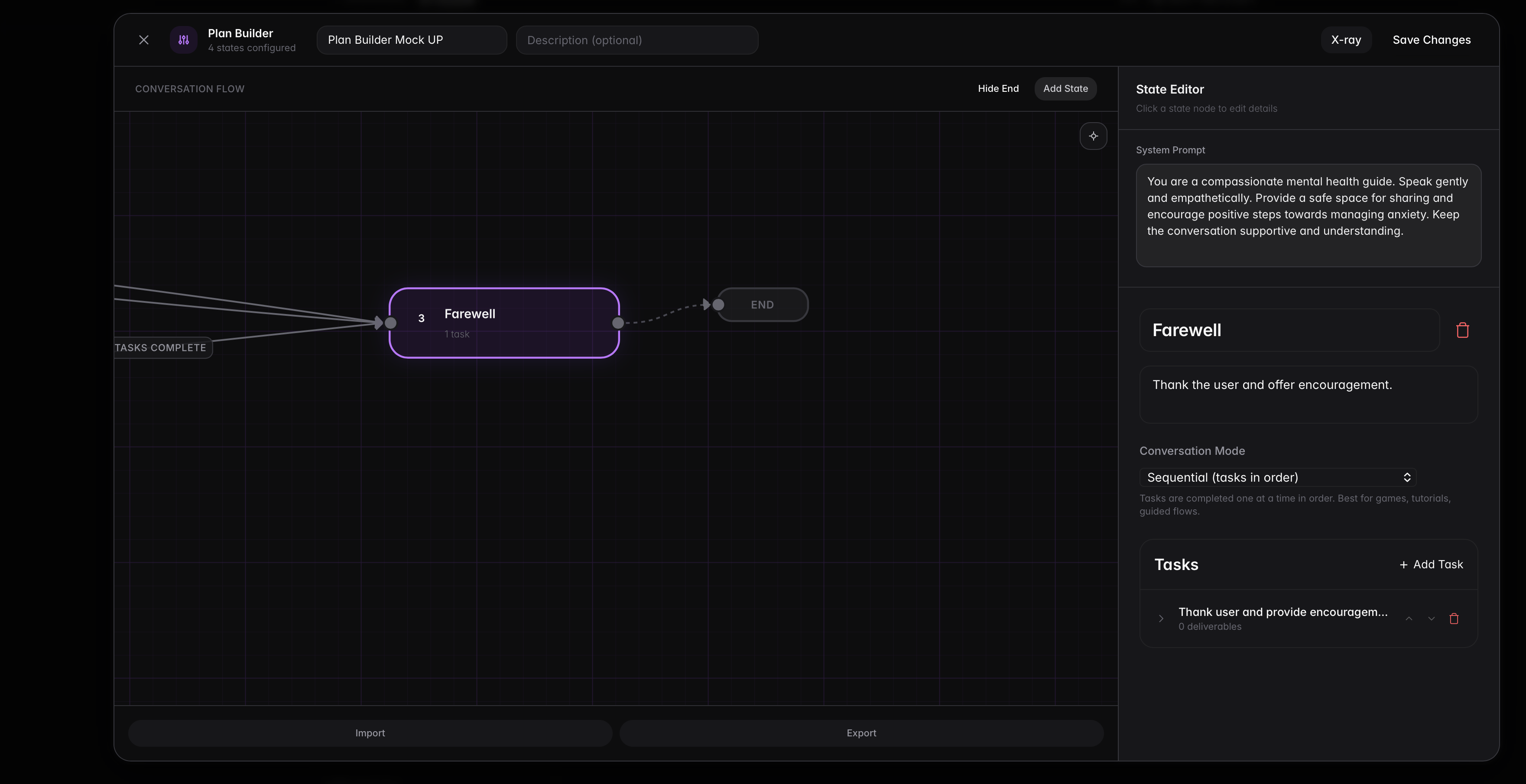

This screenshot shows a state connected to End. Use this to make terminal paths explicit in the visual plan.

End Node Behavior

The End node is a visual way to mark terminal exits in your flow. It helps you and other developers see where a conversation is expected to finish.

When you connect a state to End in the canvas, the builder stores that relationship in:

• metadata.plan_builder.canvas.end_state_ids

The End node itself is UI metadata. Your runtime plan logic still comes from state transitions and terminal states.

End Node Properties

Property	Location in JSON	Description
show_end_node	metadata.plan_builder.canvas.show_end_node	Whether the End node is visible in the canvas
end_node_position	metadata.plan_builder.canvas.end_node_position	End node coordinates on the canvas
end_state_ids	metadata.plan_builder.canvas.end_state_ids	IDs of states connected to End in the visual builder

End Node Example

{
  "metadata": {
    "plan_builder": {
      "canvas": {
        "show_end_node": true,
        "end_node_position": { "x": 1240, "y": 240 },
        "end_state_ids": ["state_farewell", "state_handoff"]
      }
    }
  }
}

Conversation Termination Flow

In practice, a conversation ends when execution reaches a terminal point in the plan. The End node helps visualize that intent, while the state machine and session lifecycle handle the shutdown.

Typical flow:

1. The user reaches a terminal state (for example, a farewell or handoff state).
2. Required tasks in that state are completed.
3. There is no further transition path to continue the plan.
4. The session moves through termination handling and closes.

Practical Modeling Pattern

Use this pattern for predictable endings:

1. Route into a dedicated farewell state.
2. In that state, keep one clear closing task (thank the user, summarize, next step).
3. Do not add onward transitions from farewell unless you intentionally want the conversation to continue.
4. Optionally connect farewell to the End node in the canvas so the terminal path is explicit to readers.

Validation Note

During save, the builder warns if a state has no outgoing transition and is not connected to End. This helps catch accidental dead-ends while still allowing intentional terminal states.

Plan Language

The Language field sits in the plan's general settings, under the note that the agent's personality lives in Settings → Personas. Choose Auto-detect to let Stella detect the participant's language, or pick German, English, French, Italian or Spanish to fix the whole session to that language. For any other language, choose Other… and type its ISO 639-1 code (for example pt); any code the speech recognizer supports works, and a plan that already holds such a code opens with Other… selected and the code shown. Personas have the same field, where the empty choice is None. The value is stored as language at the root of the plan JSON, and the AI plan generator fills it with the language it wrote the plan in.

Set it whenever a plan is written for one language. Without it, a short or unclear first sentence can be detected as the wrong language, and speech recognition then transcribes, or even translates, into that language for the rest of the session.

When you deploy an agent with a plan that declares a language, the deploy wizard uses it as the session language and skips its own language picker.

Start Node Configuration

The Start node decides how a session begins. In practice, this is where you choose the entry point state, decide when the agent should spawn, and define what participant data should be collected before the conversation starts.

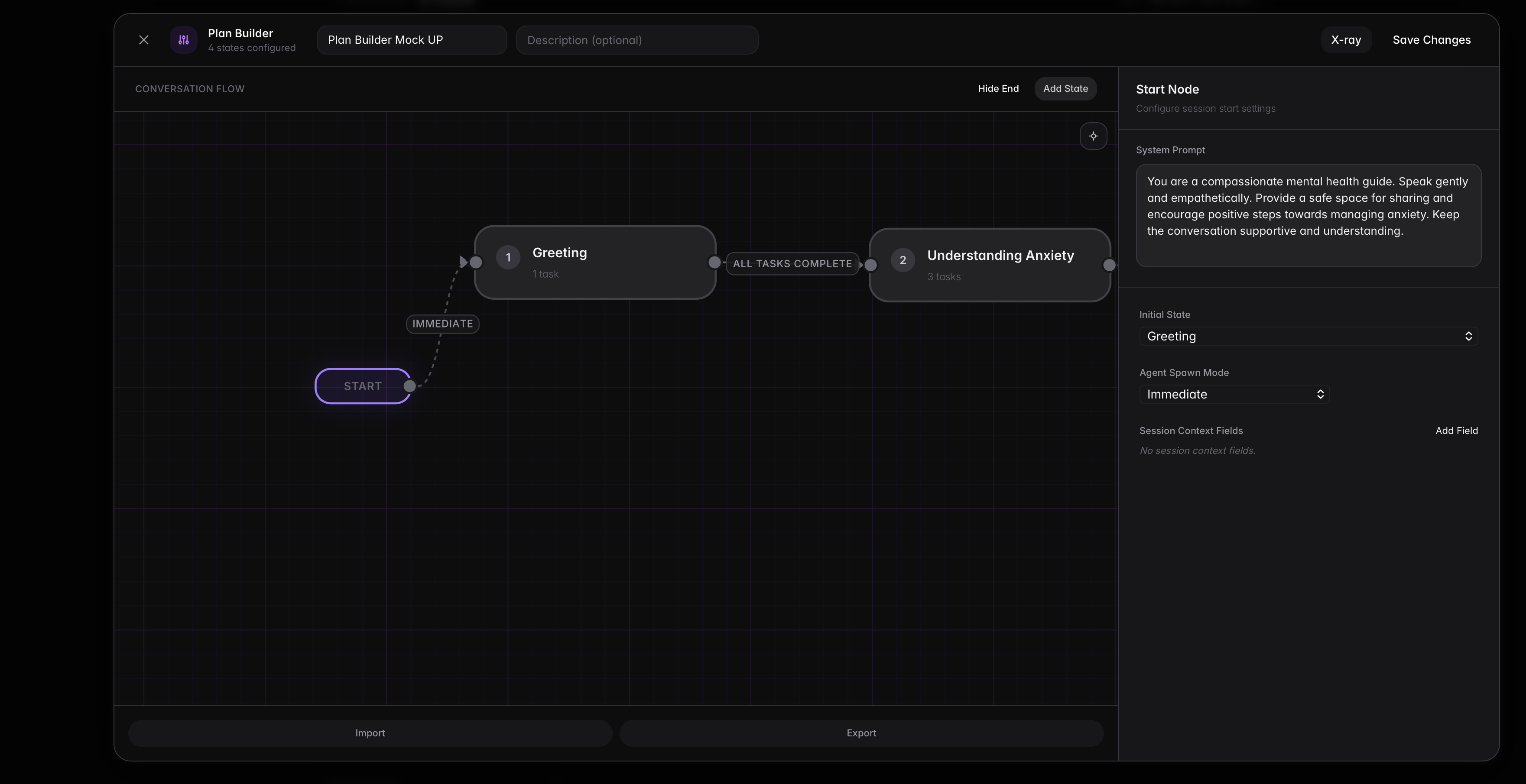

In this view, Start is selected and the right panel shows all session entry settings in one place.

Start Properties

Property	Location in JSON	Required	Description
initial_state_id	Root plan field	Yes	First state the agent enters
agent_spawn_mode	metadata.plan_builder.start.agent_spawn_mode	No	Agent startup behavior (immediate or on_demand)
session_context.fields	session_context.fields	No	Form fields shown before the session

agent_spawn_mode Options

Mode	What it does	Typical use case
immediate	Agent starts as soon as the session starts	Standard guided interviews
on_demand	Agent starts when the conversation actually begins	Flows where users may wait before interacting

Start Node Example

{
  "initial_state_id": "intro",
  "session_context": {
    "fields": [
      {
        "id": "participant_name",
        "label": "Your Name",
        "type": "string",
        "required": true
      }
    ]
  },
  "metadata": {
    "plan_builder": {
      "start": {
        "agent_spawn_mode": "immediate"
      }
    }
  }
}

Session Context Fields

Session context fields are short questions asked before the plan starts. They are useful for collecting basics like name, language, role, or any information you want available from turn one.

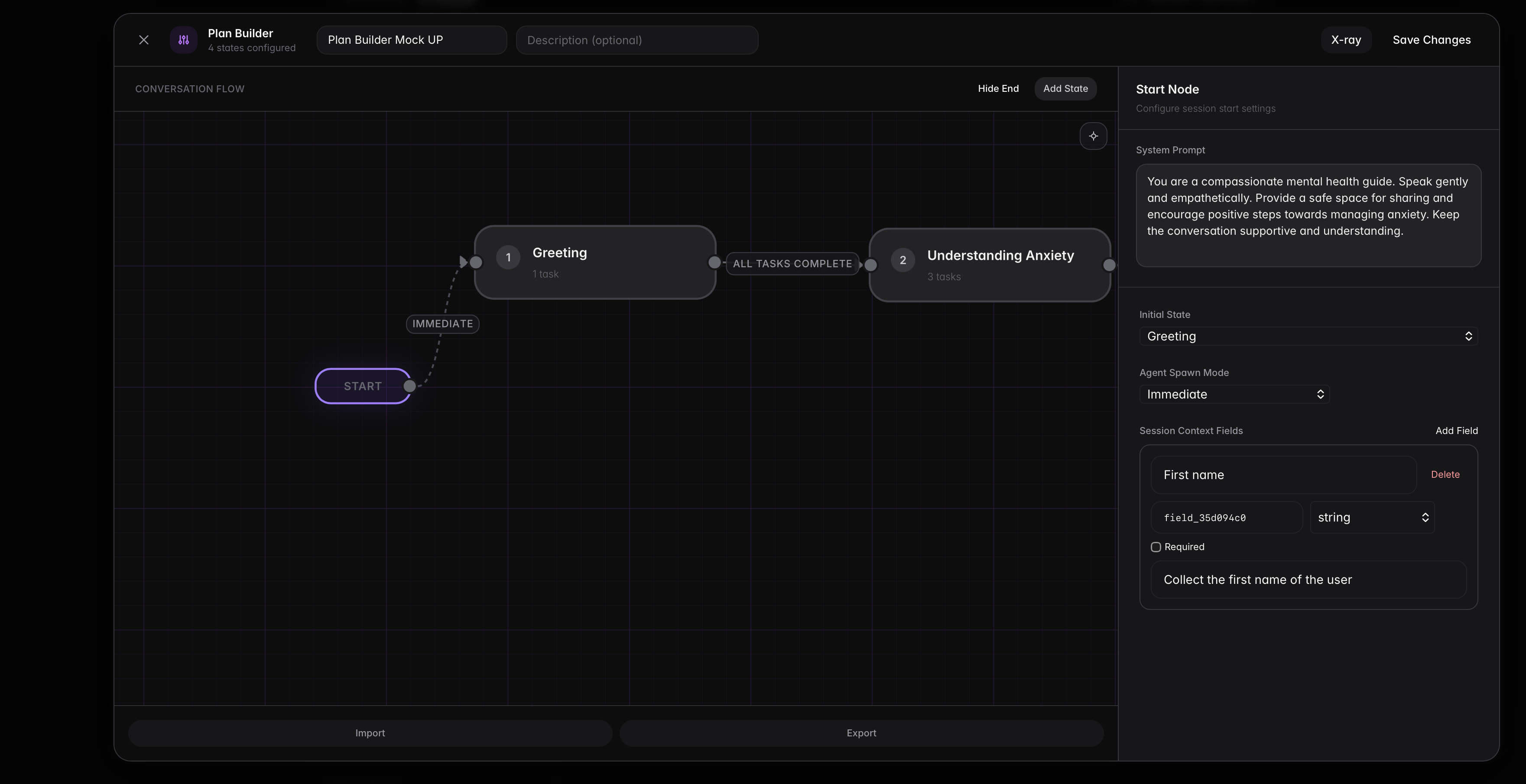

This screenshot shows a populated session-context editor, including a select field with options.

Field Properties

Property	Type	Required	Description
id	string	Yes	Stable key used in plan/session data
label	string	Yes	User-facing field label
type	string	Yes	string, number, boolean, or select
required	boolean	Yes	Whether the user must fill this field
description	string	No	Helper text shown with the field
options	string[]	For select	Allowed options for dropdown fields
default_value	string | number | boolean	No	Optional default value in plan JSON

Field Types

Type	Input behavior	Example
string	Free text	Name, company, city
number	Numeric input	Years of experience, age
boolean	True/false toggle	Consent, prior participation
select	Dropdown	Preferred language, support tier

Session Context Example

{
  "session_context": {
    "fields": [
      {
        "id": "participant_name",
        "label": "Your Name",
        "type": "string",
        "required": true,
        "description": "Please enter your full name"
      },
      {
        "id": "years_experience",
        "label": "Years of Experience",
        "type": "number",
        "required": false
      },
      {
        "id": "preferred_language",
        "label": "Preferred Language",
        "type": "select",
        "required": true,
        "options": ["English", "German", "French"],
        "default_value": "English"
      }
    ]
  }
}

Edge Configuration

Selecting an edge opens transition configuration for the source → target pair.

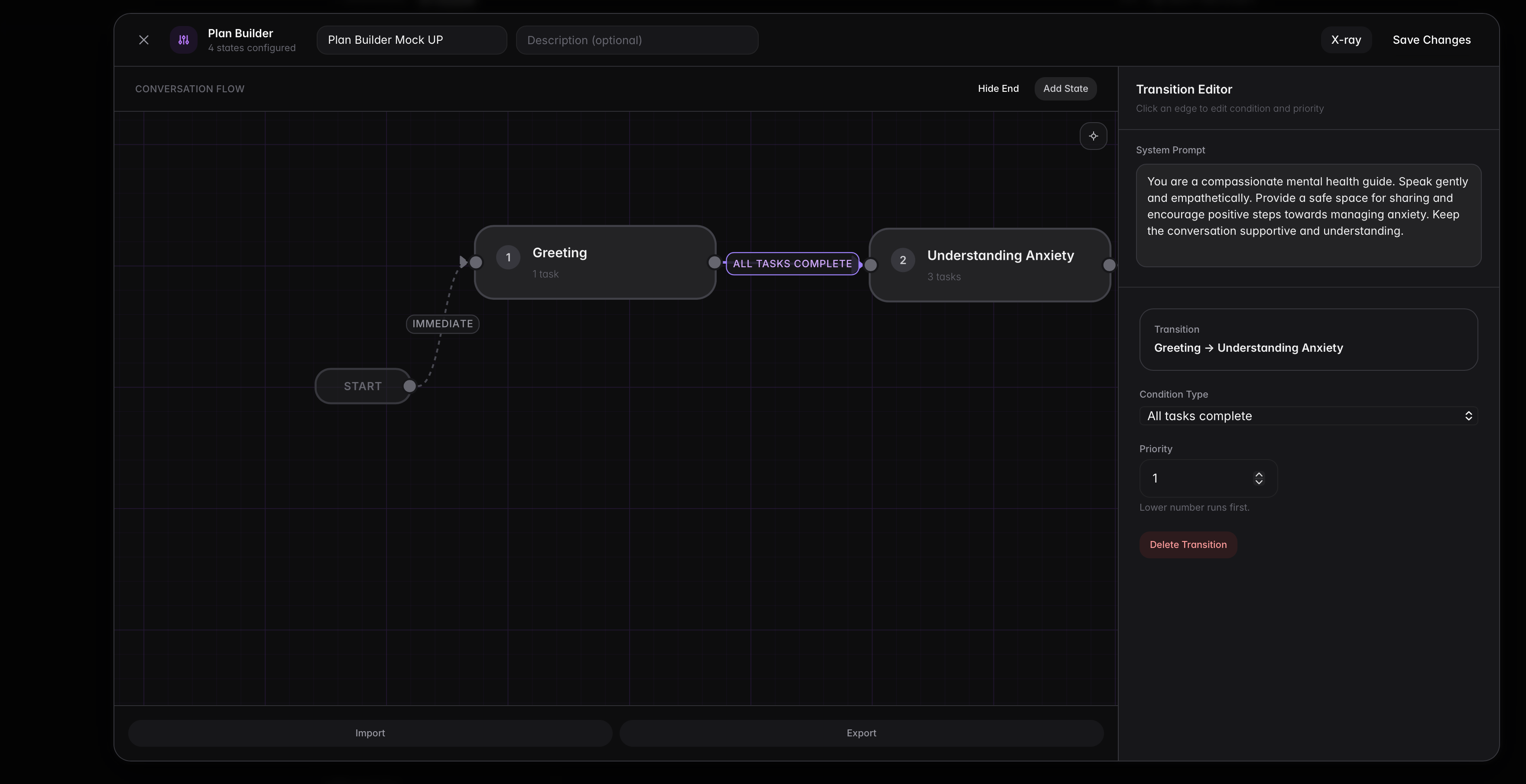

For simple sequential flow, use all_tasks_complete. The screenshot below shows the edge editor with condition type and priority configured.

Transition Properties

Property	Type	Required	Description
target_state_id	string	Yes	State to transition to
condition_type	string	Yes	Condition evaluated each turn
condition_config	object	Depends	Parameters for conditional checks
priority	number	No	Lower number runs first

Condition Types in the Builder UI

The current visual editor supports:

• all_tasks_complete
• deliverable_exists
• deliverable_value

all_tasks_complete

Transitions when required tasks in the current state are complete.

{
  "target_state_id": "review",
  "condition_type": "all_tasks_complete",
  "priority": 1
}

deliverable_exists

Transitions when a deliverable key is present.

{
  "target_state_id": "needs_followup",
  "condition_type": "deliverable_exists",
  "priority": 1,
  "condition_config": {
    "key": "callback_requested"
  }
}

deliverable_value

Transitions when a deliverable key matches an expected value.

{
  "target_state_id": "premium_flow",
  "condition_type": "deliverable_value",
  "priority": 1,
  "condition_config": {
    "key": "membership_type",
    "value": "premium"
  }
}

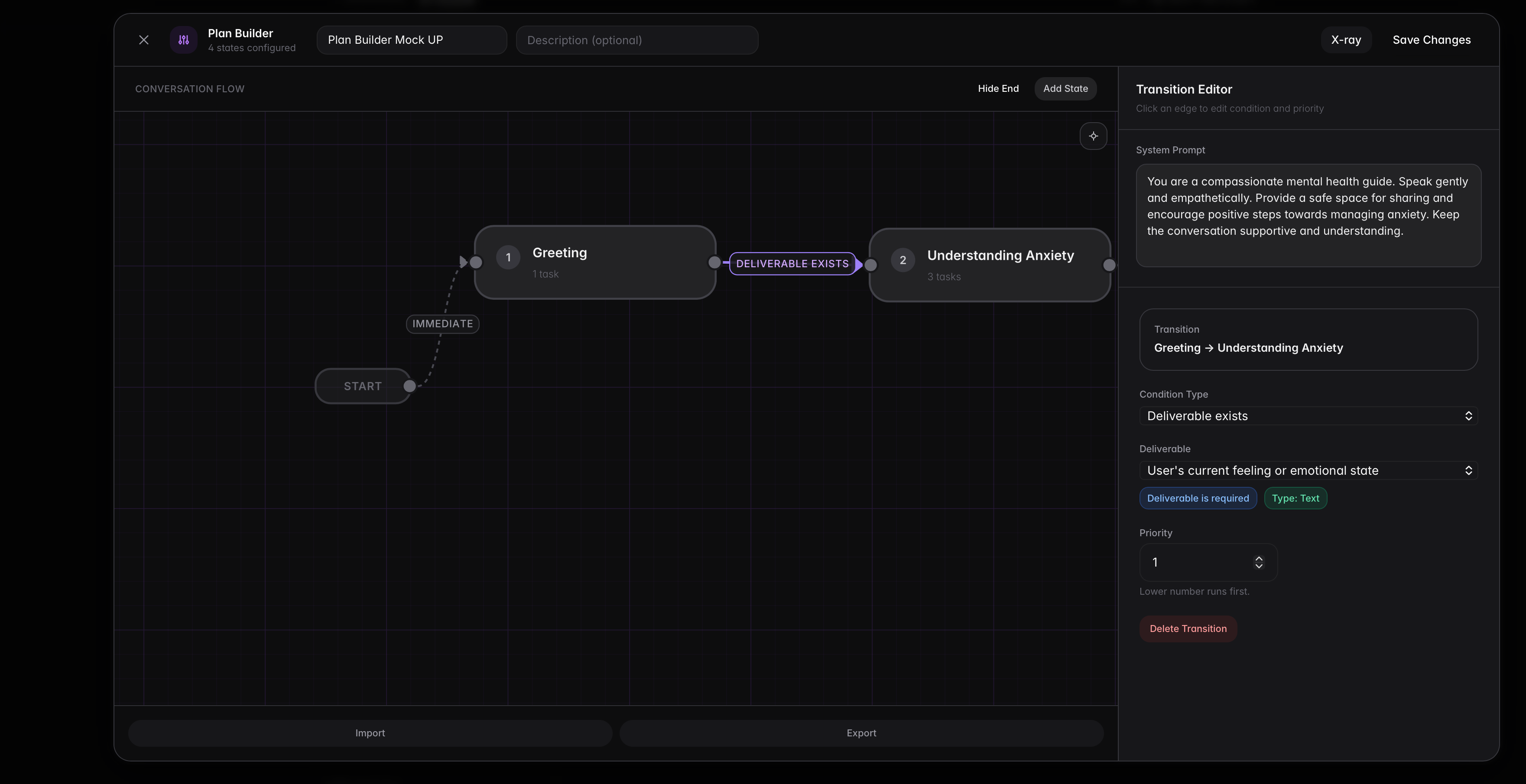

When using deliverable-based routing, select the deliverable key first, then set the expected value. This screenshot shows a typical conditional edge setup.

Priority and Route Selection

When multiple transitions are true, the transition with the lowest priority value wins.

Use explicit priority spacing for readability (for example 1, 10, 20) to keep room for future routes.

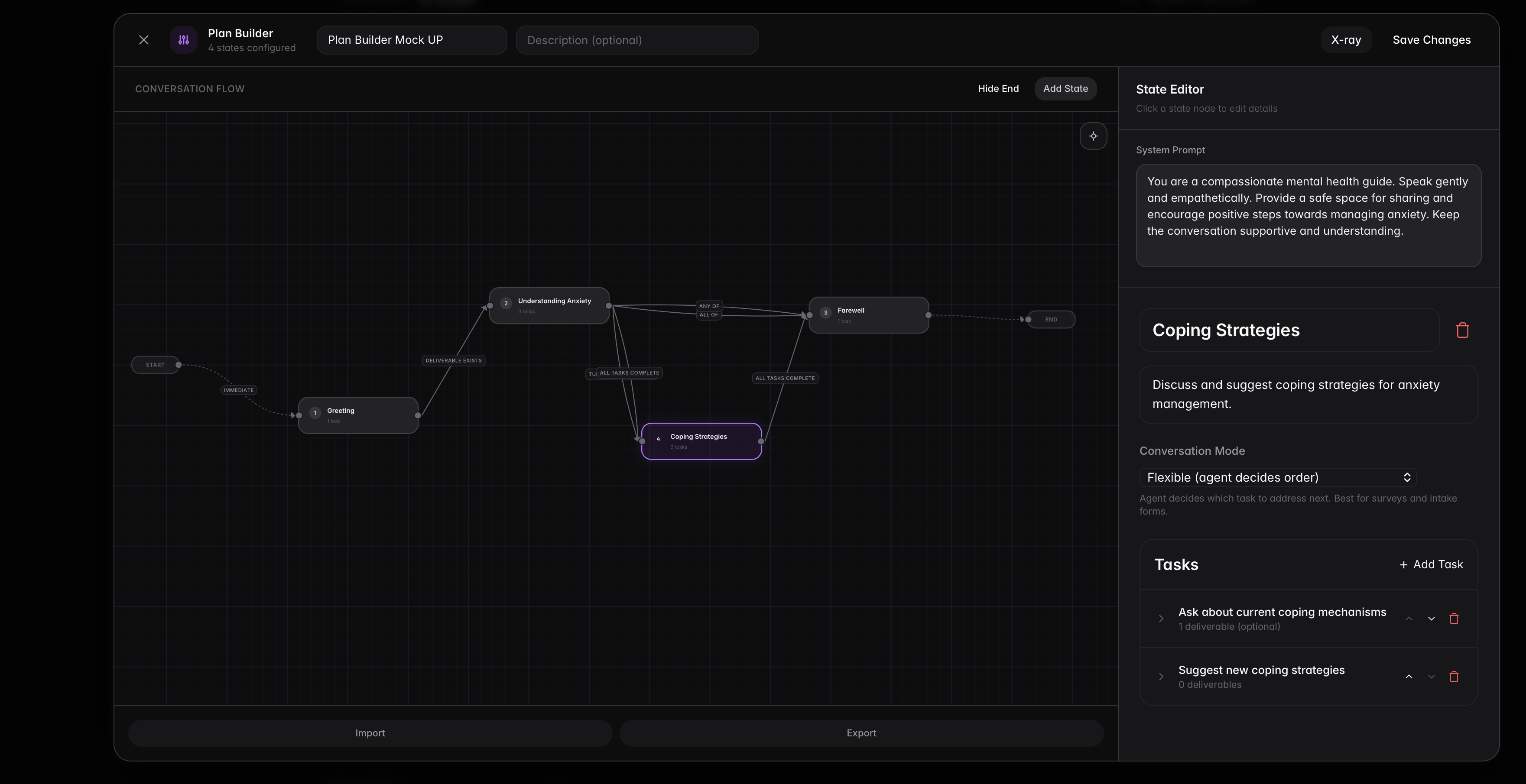

This example canvas shows a branching flow with multiple outgoing transitions from one state. Use this pattern when the plan should route to different states based on user input.

Builder Validation Rules

Before saving:

• Start must point to a valid state (initial_state_id)
• Transition conditions cannot be incomplete
• Duplicate outgoing conditions from the same source state are flagged as ambiguous

The builder also warns when states have no outgoing transitions and are not connected to End.

JSON Mapping

The builder stores both execution data and canvas metadata.

Execution-level fields:

• states
• initial_state_id
• session_context
• language

Canvas metadata fields:

{
  "metadata": {
    "plan_builder": {
      "start": {
        "agent_spawn_mode": "immediate"
      },
      "canvas": {
        "state_positions": {
          "state_1": { "x": 420, "y": 180 }
        },
        "show_end_node": true,
        "end_node_position": { "x": 1200, "y": 220 },
        "end_state_ids": ["state_3"]
      }
    }
  }
}

In short:

• Start behavior is stored in metadata.plan_builder.start
• Session context questions are stored in session_context.fields
• Canvas-only layout data stays in metadata.plan_builder.canvas

Next Steps

• States — Configure state execution modes and transitions
• Tasks — Define task instructions and required work
• Deliverables — Define what data each task must collect
